Norsat LNA X-BAND1000 SERIES

InterStellar Technologies Co.,Ltd
Contact Now

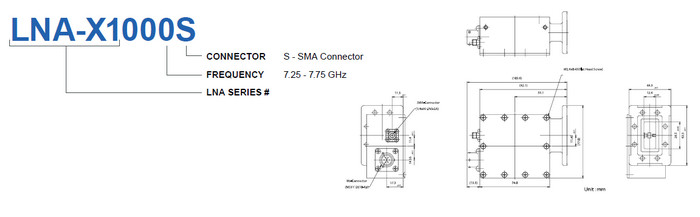

Norsat LNA X-BAND1000 SERIES

Place of Origin : Japan

Brand Name : Norsat

Certification : ISO9001

Model Number : X BAND LNA

MOQ : 1

Price : Formal quotation

Packaging Details : Export fit

Payment Terms : T/T

Contact Now

Typica l Speci fications :

Frequency:          7.25 to 7.75 GHz
Noise figure:       0.8 dB
Input VSWR:        2.0 : 1
Output VSWR:     2.0 : 1
Output P1dB :     +10 dBm
Dimensions:      106 (L) x 77 (W) x 47 (H) mm
Weight:                 550g
Input Waveguide: CPR-112G
DC Power:          MS3112E10-6P
Gain:                     50 dB
Gain flatness:     4 dB p - p max
Power requirements: +15 to +24 V
Current drain:     150 mA
Temperature range:  -30°C to +60°C

Norsat LNA X-BAND1000 SERIES
